Exceptional
HERITAGE
With a Supremo system, you’re not just listening to top-tier car audio technology, you’re tapping into a legacy conceived in 1975.

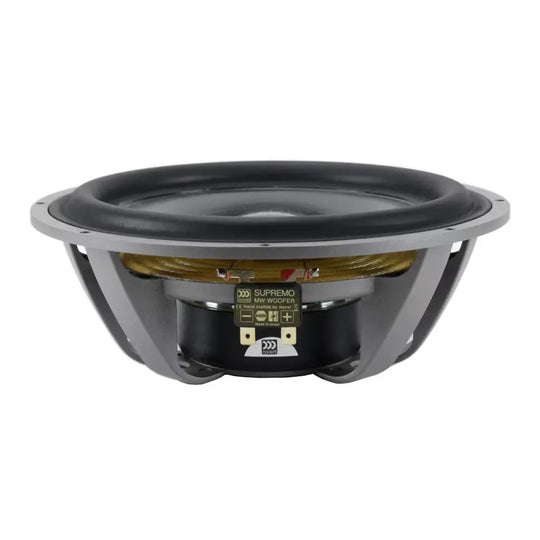

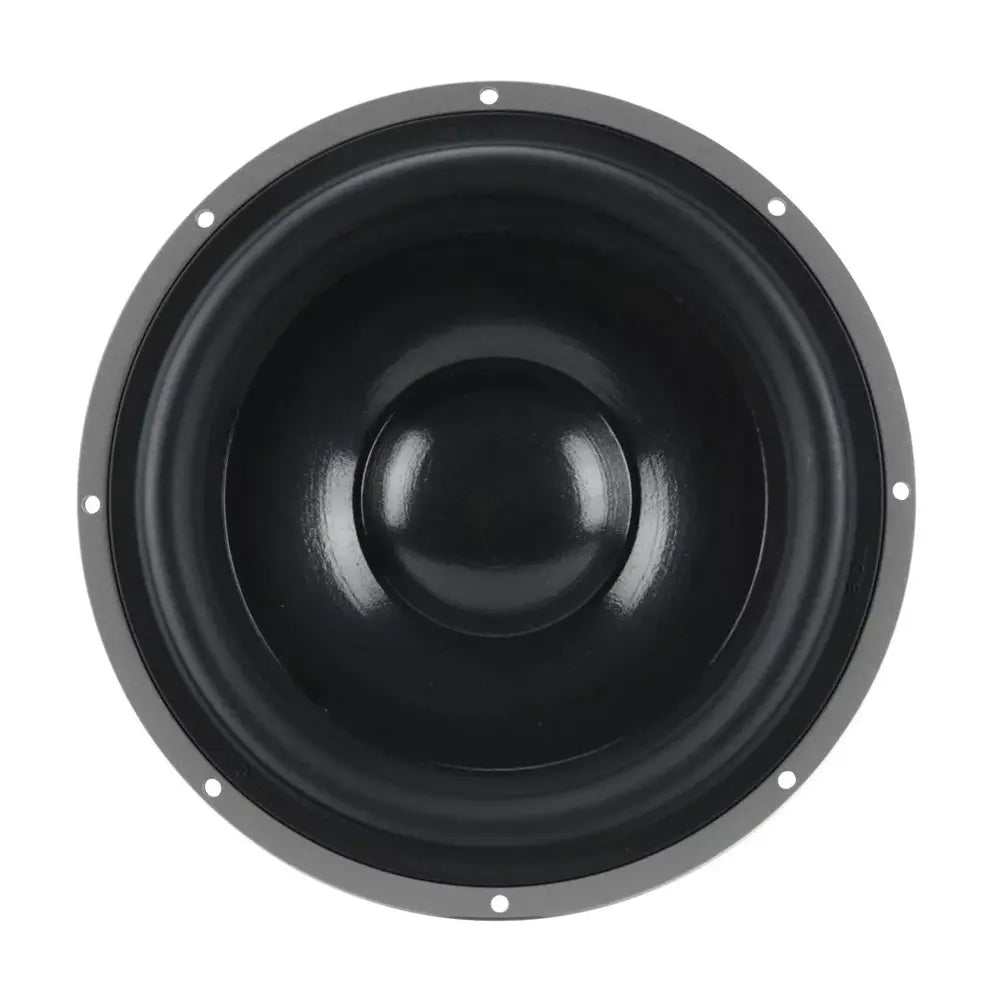

Morel’s recipe for success is based on a no-compromise design using the pinnacle of Morel technology. The woofers blend powerful neodymium magnets with our EVC (External Voice Coil) motor topology, an underhung 3" (76mm) diameter Hexatech™ Aluminium voice coil, and a proprietary carbon fibre and Rohacell sandwich cone. These combine to create lightning quick transient response and dynamic sound reproduction. High-frequency details resonate from the exquisite Supremo Piccolo tweeter, which is lauded around the globe for its unrivalled open and detailed responsiveness.
UNMATCHED
MUSICALITY
Crisp, clear musicality; deep, powerful tonality; and subtleties which reveal themselves delightfully to listener’s ears.
SUPREMO TECHNOLOGIES
TWEETER
ACCUFLEX™
A specially engineered damping compound hand-applied to the soft domes, adding rigidity and damping, which greatly improves the clarity and bandwidth of the tweeter. The Acuflex™ diaphragm exhibits controlled cancelling break up (accurate–flexing), meaning each break-up mode is counteracted by another in the opposite direction, enabling smooth frequency response.
TWEETER
UNDER-HUNG VOICE COIL
An under-hung voice coil features a voice coil winding height shorter than the magnetic gap. This means the voice coil is positioned within the magnetic energy field at all times leading to greater articulation and transient response.
TWEETER & MID
MAGNET TECHNOLOGY
Morel's experience in motor design has allowed it to harness the magnetic energy in extremely effective manners. There are four key motor systems used –High Grade Ferrite, Neo motor (NMM), double magnet (DMM), and Hybrid motor (HMM) systems. Each system is designed to achieve a very precise balance of size, weight, and magnetic flux to ensure optimization of the electro magnetics characteristics for each transducer.
MID
UNIFLOW™ CHASSIS
An open design that is aerodynamically efficient to optimize venting and decompression allowing sound waves to flow uniformly and smoothly. Its geometric shape also eliminates interference with the woofer's moving components, enabling the use of a low-profile spider for greater support and stability.
MID
TLC | TRIPLE LAYER COMPOSITE
An advanced one-piece cone structure consisting of a woven carbon-fiber top skin, a Rohacell™ foam core and a non-woven carbon fiber skin beneath. This proprietary cone structure offers the ultimate balance of weight, ultra-high stiffness and high self-damping characteristics.
TWEETER & MID
EVC™ | EXTERNAL VOICE COIL
Morel speakers with EVC™ technology utilize voice coils that are up to three times larger than those used in conventional loudspeakers, enabling improved heat dissipation, power handling and linearity. The EVC™ design moves the magnetic motor system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil.
TWEETER & MID
HEXATECH™ ALUMINIUM VOICE COIL
Made from 100% Aluminium wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing thermal efficiency by up to 20%
TWEETER & MID
C.A.R. FILTER
Controlled Acoustic Resistance - The C.A.R. Filter™ improves the acoustic loading by controlling airflow within the driver, mimicking the effects of a cabinet while improving power handling by 30%. This provides greater control over the cone movement for improved bass dynamics.
